What Are the Advantages of Waterproof Protection Box?
2025-08-06
In today's demanding industrial and residential environments, Waterproof Protection Boxes have become essential components for safeguarding electrical connections. At YuWei factory, we engineer these protective solutions to withstand the harshest conditions while maintaining optimal functionality.
Key Advantages of Our Waterproof Protection Box

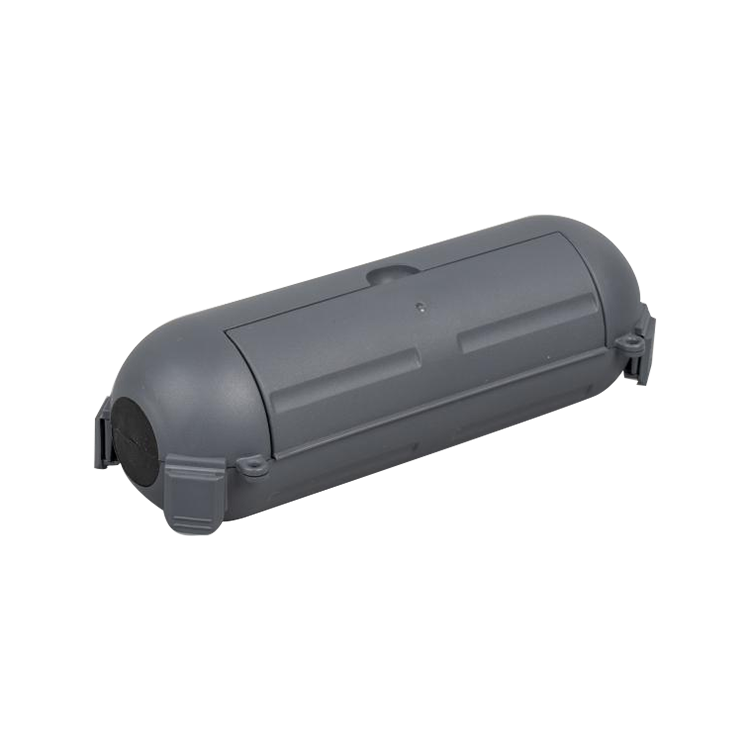

The primary benefit of our Waterproof Protection Box lies in its ability to prevent moisture ingress that can damage sensitive electrical components. Unlike standard enclosures, our IP44 Socket Waterproof Protective Box features multiple layers of protection:
Protection Features:
-
Multi-point sealing system with silicone gaskets
-
Reinforced hinge mechanism for consistent closure
-
Corrosion-resistant stainless steel fasteners
-
UV-stabilized polycarbonate construction
Performance Comparison:
|
Feature |
Standard Box |
YuWei Protection Box |
|---|---|---|
|
Water Resistance |
IP54 |
IP66 |
|
Impact Resistance |
IK08 |
IK10 |
|
Temperature Range |
-20°C~60°C |
-40°C~120°C |
|
Service Life |
3-5 years |
8-10 years |
Technical Specifications of IP44 Socket Waterproof Protective Box
Our factory produces Waterproof Protection Boxes with precision engineering to meet diverse application requirements:
Material Composition:
-
Box Body: 2.5mm thick UV-resistant polycarbonate
-
Seals: Food-grade silicone (shore hardness 60±5)
-
Hinges: 304 stainless steel with self-lubricating pins
-
Transparent Cover: 3mm anti-fog polycarbonate
Dimensional Options:
| Model Series | Dimensions (L×W×H) | Weight | Cable Entry Points |
|---|---|---|---|
| YW-100 | 100×100×80mm | 450g | 4×PG9 |
| YW-150 | 150×150×100mm | 780g | 6×PG11 |
| YW-200 | 200×200×150mm | 1.2kg | 8×PG16 |
Application Scenarios and Benefits
The YuWei factory Waterproof Protection Box excels in multiple challenging environments. For outdoor electrical installations, our boxes prevent rainwater penetration that could cause short circuits. In industrial settings, they protect against dust and chemical splashes that might corrode connections.
Particularly for the IP44 Socket Waterproof Protective Box, we've enhanced the design to accommodate frequent access needs. The quick-release latch system allows maintenance without tools, while maintaining the waterproof integrity after repeated openings. This feature proves invaluable for facilities requiring regular inspections.
Our testing procedures simulate years of environmental exposure in accelerated conditions. Each box undergoes 500+ opening/closing cycles, salt spray testing equivalent to 10 years coastal exposure, and thermal shock tests between -40°C and 120°C.
Frequently Asked Questions
1. How does the waterproof rating system work for these boxes?
The IP (Ingress Protection) rating consists of two digits - first for solid particle protection (6=total dust tightness) and second for liquid protection (6=powerful water jets). Our IP44 Socket Waterproof Protective Box exceeds these standards with additional sealing features.
2. Can these boxes be customized for specific cable configurations?
Yes, our factory offers custom machining for cable entries, mounting patterns, and internal divisions. We can incorporate DIN rail mounts, terminal blocks, or other organizational features based on your specific requirements.
3. What maintenance do these protection boxes require?
Our designs require minimal maintenance - just periodic inspection of seals and cleaning of drainage channels (if equipped). The stainless steel components resist corrosion, and the polycarbonate won't degrade under UV exposure.
Ningbo Yuwei Science and Technology Co., Ltd. stands ready to provide expert solutions for your electrical protection needs. Contact us to discuss how our Waterproof Protection Box can enhance the reliability and safety of your installations. Our engineering team can recommend the ideal configuration for your specific application requirements.
