The T-Connector Unveiled: Stainless Steel Tee vs. Other Pipe Fittings in Design and Function

Introduction:

In the intricate landscape of piping systems, various fittings play distinct roles in directing the flow of fluids. Among these, the stainless steel tee stands out with its unique T-shaped design, offering specific advantages over other pipe fittings. In this blog, we will explore the nuances that differentiate the stainless steel tee from other types of pipe fittings, both in terms of design and function.

1. Design Characteristics of Stainless Steel Tee:

1. T-Shaped Configuration:

  - The most distinctive feature of a stainless steel tee is its T-shaped configuration, which includes a main run and two lateral outlets forming the arms of the "T."

2. Three Openings:

  - The tee fitting has three openings, two aligned along the horizontal axis and one along the vertical axis, allowing for the junction of three pipes or tubing sections.

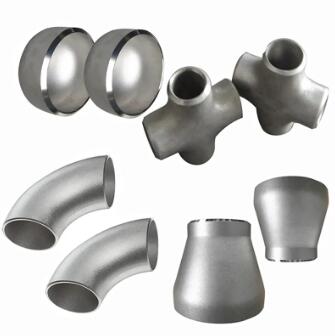

2. Comparisons with Other Pipe Fittings:

1. Elbow vs. Tee:

  - Design Distinction:

    - Elbows typically have a curved design for directional changes, whereas tees provide a T-shaped connection for branching or combining three pipelines.

  - Function:

    - Elbows redirect the flow in a single direction, while tees facilitate fluid distribution in three directions.

2. Cross vs. Tee:

  - Design Distinction:

    - Cross fittings have four openings in a cross-shaped configuration, whereas tees have three openings in a T-shaped design.

  - Function:

    - Cross fittings are used for more complex pipeline intersections, while tees are ideal for simpler branching connections.

3. Reducer vs. Tee:

  - Design Distinction:

    - Reducers taper in size to connect pipes of different diameters, while tees maintain the same diameter in all three openings.

  - Function:

    - Reducers accommodate changes in pipe diameter, while tees facilitate fluid distribution without altering diameter.

3. Functionality of Stainless Steel Tee:

1. Fluid Distribution:

  - The primary function of a stainless steel tee is to facilitate the distribution or combination of fluid flow within a piping system.

2. Branching Connections:

  - Tees create branching connections, allowing fluids to be directed to multiple destinations or merged from different sources.

3. Versatility:

  - Stainless steel tees are versatile in their applications, suitable for various industries such as oil and gas, chemical processing, water treatment, and HVAC systems.

4. Specialized Types of Stainless Steel Tees:

1. Equal Tee:

  - Features three openings of the same size, ideal for applications where equal fluid distribution is required.

2. Reducing Tee:

  - Incorporates openings of different sizes, suitable for scenarios where different flow rates or pipe diameters need to be accommodated.

Conclusion: Tee-ing Off into Precision and Versatility

The stainless steel tee, with its distinctive T-shaped design, stands apart from other pipe fittings in both form and function. While other fittings serve specific directional changes, diameter adjustments, or complex intersections, the tee takes center stage in facilitating fluid distribution and branching connections. Its versatility, combined with the durability of stainless steel, makes it a key player in various industries. In the symphony of fluid dynamics within piping systems, the stainless steel tee confidently takes its place, directing the flow with precision and contributing to the seamless operation of diverse applications.
