Precision and Strength: Understanding Cylinder Pins and Their Applications

Cylinder pins are an essential component in many mechanical systems. Their cylindrical design allows the pins to fit precisely into holes, providing alignment and torque without slipping or wobbling. The versatility of cylinder pins is vast, making them ideal for various applications across multiple industries.

What is a Cylinder Pin?

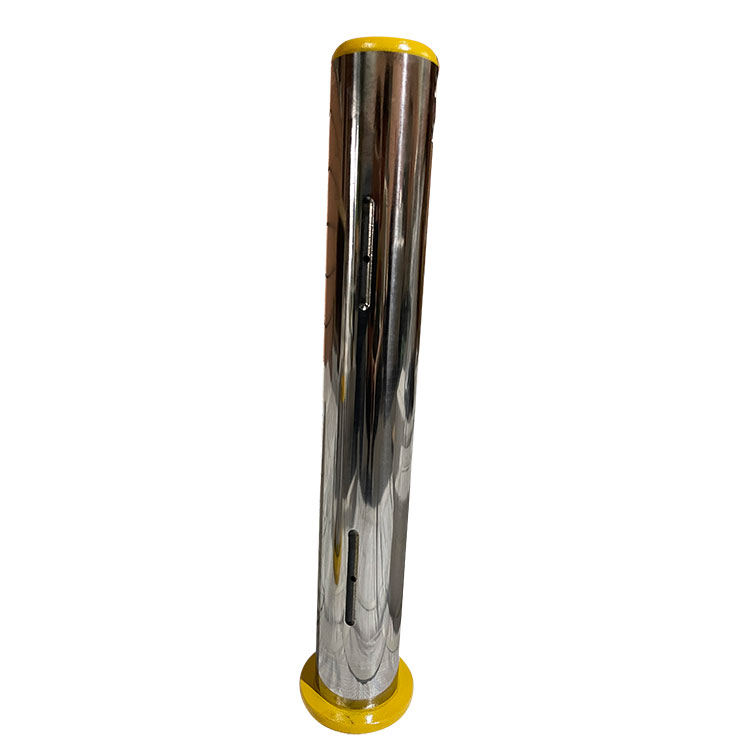

A cylinder pin is a cylindrical metal pin used to secure two mechanical parts into place. The pins are inserted through a hole in each part, and a retaining clip or other locking mechanism secures the pin, preventing it from falling out or slipping. Cylinder pins can vary in size, materials, and shape depending on the application.

Cylinder Pin Function:

The primary function of a cylinder pin is to provide a secure and precise connection between moving mechanical parts. They can act as a pivot point and transmit torque from one component to another. Cylinder pins are also used to provide accurate alignment between two components. However, their primary function is to secure moving mechanical parts.

Where is it typically used?

Cylinder pins are used in many industries, including automotive, aerospace, construction, marine, and agriculture. Automotive applications include engines, transmissions, and steering systems. In aerospace, cylinder pins are used for actuator linkages, landing gear systems, and control surfaces. In construction, they can be found in bulldozers and excavators, while in marine applications, cylinder pins are used for steering systems in boats and ships. In agriculture, cylinder pins are used for plows, cultivators, and seeders.

Advantages of Cylinder Pins:

The precision and accuracy of cylinder pins are critical advantages. Their cylindrical shape allows them to fit securely into holes with high degrees of accuracy, providing precise alignment between mechanical parts. They also transmit torque effectively, making them ideal for applications like hydraulic systems.

Conclusion:

Cylinder pins may be a small part, but they play a vital role in many mechanical systems. Their precise and accurate construction makes them ideal for a wide range of applications, ensuring components remain secure and aligned. With a range of sizes, materials, and shapes, cylinder pins are versatile and adapt to many industries' needs. Their toughness, reliability, and precision rank high among other mechanical components, making them a go-to choice for many industries.
