Demystifying Single Wall Corrugated Pipe Extrusion Lines: A Deep Dive into Operation and Functionality

In the vast world of industrial machinery, few processes are as crucial and fascinating as extrusion. Among the many applications of extrusion technology, one that stands out is the production of single wall corrugated pipes. These pipes serve a multitude of purposes in various industries, from drainage systems to electrical conduits. In this blog, we'll delve into the intricacies of single wall corrugated pipe extrusion lines, exploring what they are and how they operate.

Understanding Single Wall Corrugated Pipe Extrusion Lines

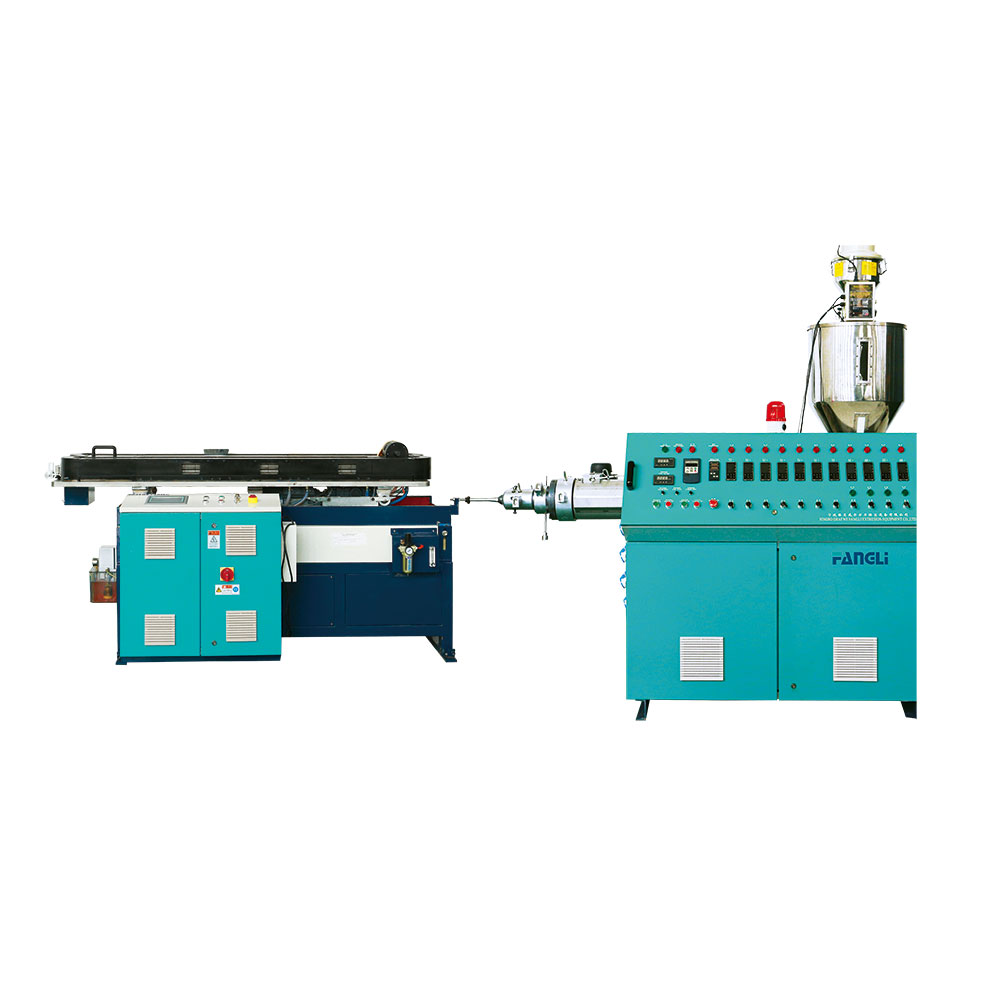

A single wall corrugated pipe extrusion line is a sophisticated piece of equipment designed to manufacture corrugated pipes from raw materials such as polyethylene (PE) or polypropylene (PP). These pipes are characterized by their unique corrugated structure, which provides strength, flexibility, and resistance to impact and abrasion.

The Components of a Single Wall Corrugated Pipe Extrusion Line

A typical single wall corrugated pipe extrusion line consists of several key components:

1. Extruder: The heart of the extrusion line, the extruder melts the raw material and pumps it through a specially designed screw barrel assembly.

2. Die Head: This component shapes the molten plastic into the desired profile, which in the case of single wall corrugated pipes, includes the characteristic corrugations.

3. Corrugator: The corrugator is responsible for forming the corrugated structure of the pipes. It consists of a series of molds or forming plates that shape the molten plastic into the desired corrugation pattern.

4. Cooling and Shaping System: After exiting the corrugator, the pipes are cooled and shaped to ensure dimensional accuracy and structural integrity.

5. Haul-off Unit: This component pulls the extruded pipe through the production line at a controlled speed, ensuring uniformity and consistency.

6. Cutting and Stacking Equipment: Finally, the extruded pipe is cut to the desired length and stacked for packaging and transportation.

The Operation of a Single Wall Corrugated Pipe Extrusion Line

The operation of a single wall corrugated pipe extrusion line is a carefully orchestrated process:

1. Material Preparation: Raw material, typically in the form of pellets or granules, is loaded into the hopper of the extruder.

2. Extrusion: The raw material is heated and melted inside the extruder before being forced through the die head to form a continuous stream of molten plastic.

3. Corrugation: As the molten plastic exits the die head, it enters the corrugator, where it is shaped into the desired corrugated profile.

4. Cooling and Shaping: The newly formed corrugated pipe is cooled and shaped using a combination of water cooling and vacuum calibration to ensure dimensional accuracy.

5. Haul-off and Cutting: The cooled pipe is then pulled through the production line by the haul-off unit at a controlled speed. As it moves, it is cut to the desired length by cutting and stacking equipment.

6. Final Inspection and Packaging: The finished pipes undergo a final inspection for quality and consistency before being stacked, packaged, and prepared for shipment.

Conclusion

In conclusion, single wall corrugated pipe extrusion lines play a crucial role in the manufacturing process of corrugated pipes. By leveraging advanced technology and precision engineering, these extrusion lines produce pipes that are durable, versatile, and suitable for a wide range of applications. Whether it's in drainage systems, telecommunications, or automotive industries, single wall corrugated pipes are indispensable components that continue to shape our modern infrastructure.
